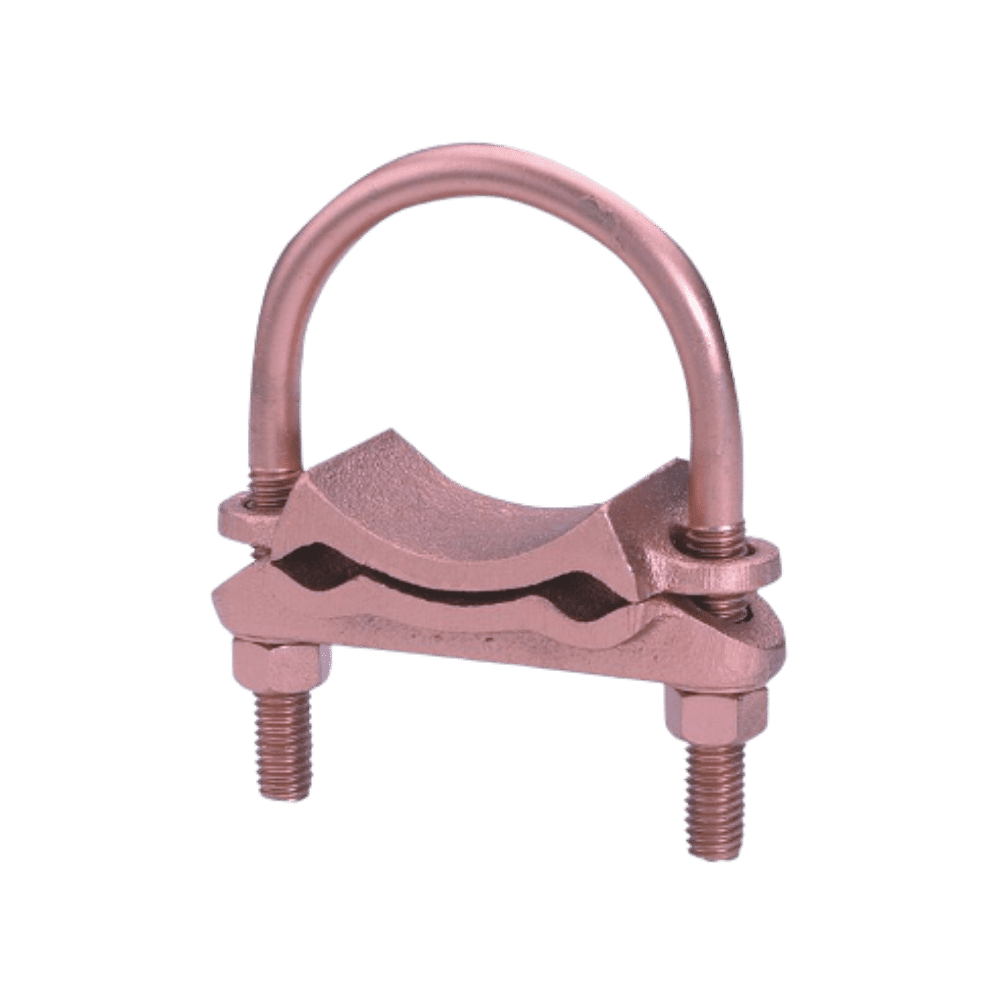

Ground Conn U Clamp 1″ X 4 – 2/0awg 2way Gd1526 Burndy

Product Details

The Ground Conn U Clamp 1″ X 4 – 2/0awg 2way Gd1526 Burndy is a Mechanical Grounding Connector, 2 Parallel Cables to Rod or Pipe, 4 AWG ( Sol.) – 2/0 AWG (Str.), 1-1/8″ to 1-1/4″ Rod, 1″ Pipe.

Features: High Copper Alloy Ground Connector For Joining A Range Of
Two Parallel Cables To Rod Or Tube, Especially Good For Grounding
Fence Posts, High Copper Alloy Cast Body With DURIUM U-Bolts, Nuts,
And Lock washers Make The GD Suitable For Burial In Ground Or
Concrete, One-Wrench Installation, UL467 Listed, Acceptable For Direct
Burial In Earth Or Concrete, Ground Rod Size: 1-1/8 – 1-1/4 IN OuterDiameter, Tube (ips) Size: 1 IN Outer-Diameter, Installation Torque: 240
IN-LB, Stud/bolt Size: 3/8 IN, Width: 2-5/8 IN, Height: 3-3/8 IN, Raised
Floor: No

General

Application: For Joining A Range Of Two Parallel Cables To Rod Or Tube, Grounding
Fence Posts, Direct Burial Applications In Earth Or Concrete
Installation Torque Recommended in-lb: 240 LBS/in
Material: Copper Alloy, Cast
Material Type – Screw DURIUM™ Silicon Bronze
Plated: N
Plating Type: Unplated
Sub Brand: MECHANICAL CONNECTOR
Type: GD
U Bolt Type: 244
UPC: 781810260258
UPC: 12 Digit 7818102602588

Dimensions

B Length inch 1.13 in
Height fraction 3-3/8 in
inch Height 3.38 in
fraction Width 2-5/8 in
Width inch 2.63 in
mm Width 67 mm

Conductor Related

Copper – Solid Size 4;3;2;1;1/0;2/0
– Solid Size Range 4-2/0
Copper Str – Size 4;3;2;1;1/0;2/0
– Size B Range 1
– Size Range 4-2/0
Copper Tube Std Size – 1-1/8;1-1/4
– Range: 11/811/4GD1526
– Range: 1-1/8-1-1/4
Rod Size – 1 1/4 in
– Range 1 1/4 in

Certifications and Compliance

CSA Approved No
ETL No
UL Listed Direct Burial Yes
UL Recognized No
cULus No
Industry Standard(s) UL467
Standards – Industry Standards Met UL467
Standards – RoHS Compliance Status EX
UL Listed Yes
