Ground conn U Clamp 3/4″ x 2/0-250mcm 3way gk6429 Burndy

Product Details

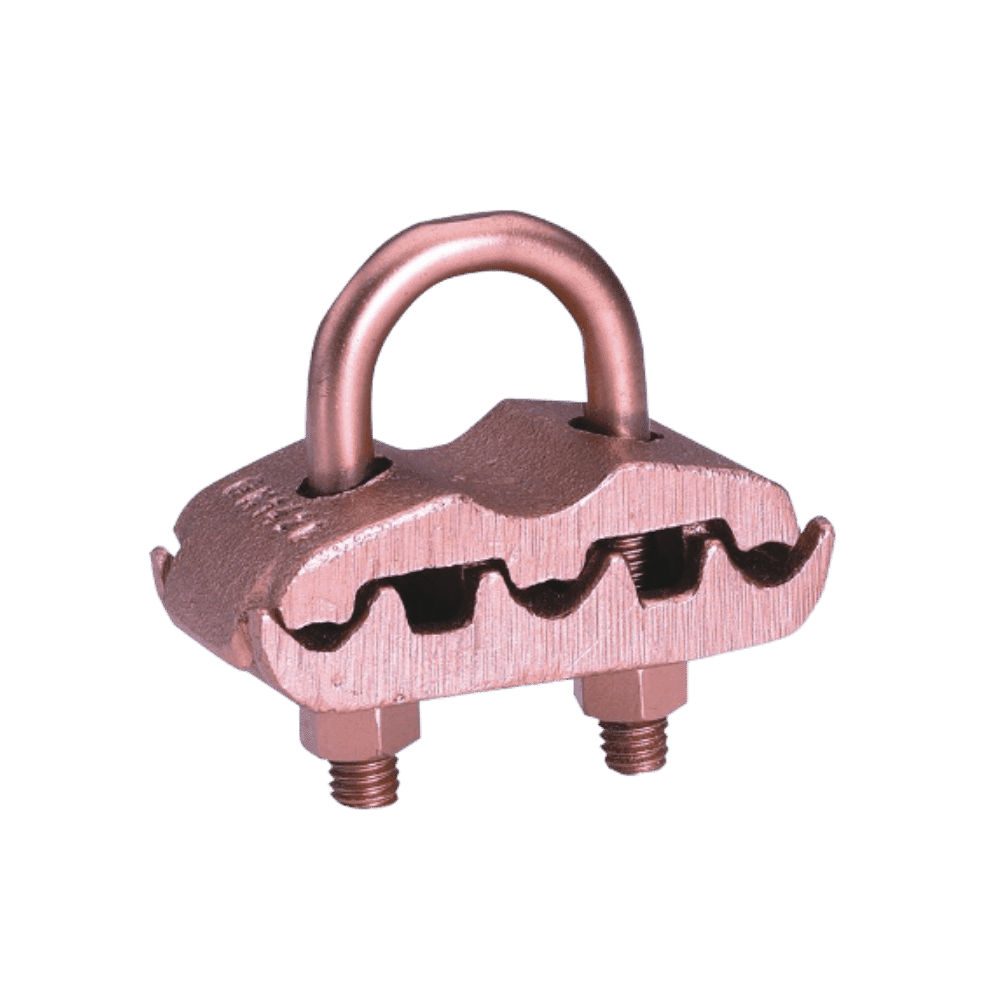

Ground conn U Clamp 3/4″ x 2/0-250mcm 3way gk6429 Burndy, is a Mechanical Grounding Connector, 3 Cables to Rod or Pipe, 2/0 AWG (Sol)
-250 kcmil, 3/8″ Pipe, 5/8″-3/4″ Rod.

Features: High Copper Alloy Ground Connector For Joining Three Equal
Cables To Rod Or Tube, Cable Grooves Take A Wide Range Of Cable, High
Copper Alloy Cast Body And DURIUM U-Bolts, Nuts, And Lockwashers
Make The GK Suitable For Direct Burial In Soil Or Concrete, One-Wrench
Installation, UL467 Listed, Acceptable For Direct Burial In Earth Or
Concrete, Ground Rod Size: 5/8 – 3/4 IN, Tube (ips) Size: 3/8 IN, Width: 3-
1/2 IN, Height: 2-7/8 IN, Installation Torque: 480 IN-LB

General

Application For Joining Three Equal Copper Cables To Rod Or Tube, Direct Burial In
Earth Or Concrete
Installation Torque Recommended in-lb 480 LBS/in
Material Copper Alloy, Cast
Material Type – Screw DURIUM™ Silicon Bronze
Plated N
Plating Type Unplated
Sub Brand MECHANICAL CONNECTOR
Type Three Cables to Rod or Tube
UPC 781810233535
UPC 12 Digit 7818102335355

Dimensions

Bolt Size – 1/2 in
B Length inch – 1.63 in
Height inch  – 2.88 in
Width fraction – 3-1/2 in
inch Width- 3.50 in
mm Width 0 89 mm

Conductor Related

Rod Size 5/8 in ; 3/4 in
Conductor Size 2/0 AWG Sol – 250 kcmil

Certifications and Compliance

– CSA Approved No
– ETL No
– UL Listed Direct Burial Yes
– UL Recognized No
– cULus No
Industry Standard(s) UL467
Standards – Industry Standards Met UL467
Standards – RoHS Compliance Status EX
UL Listed Yes
