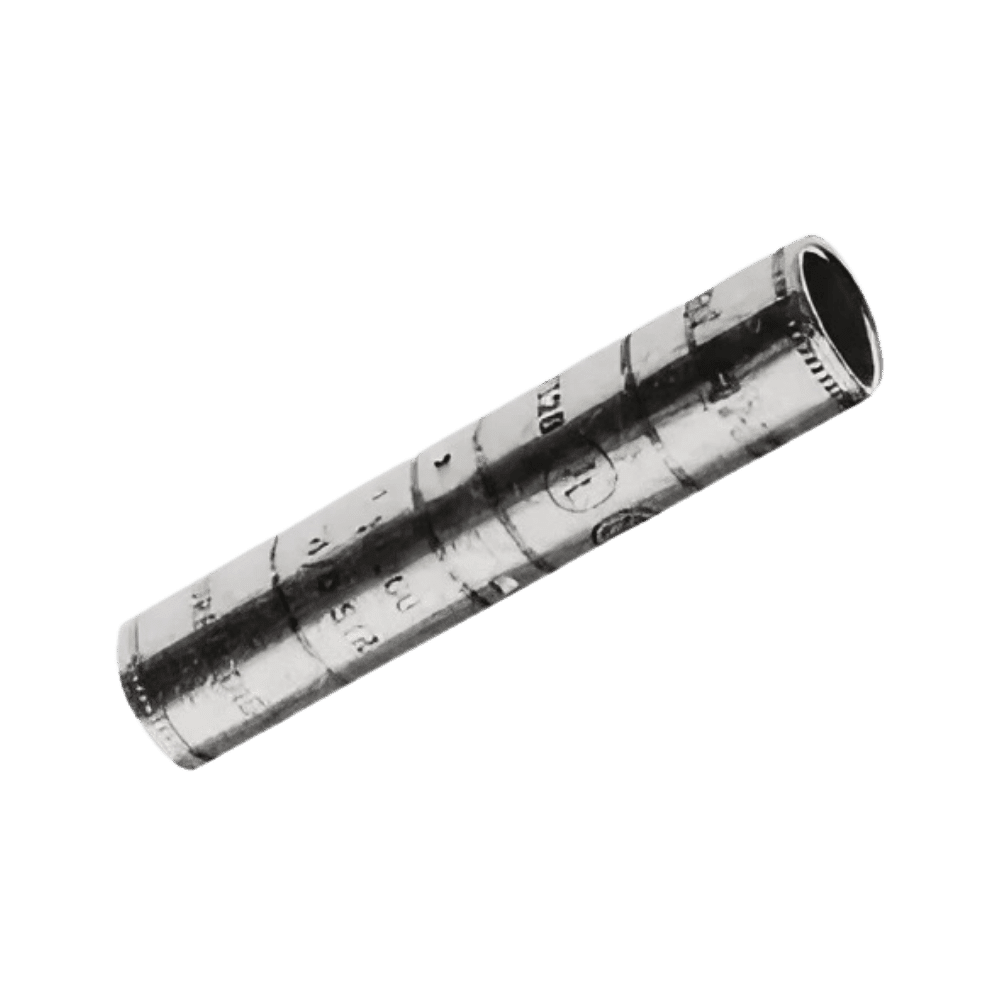

Sleeve Connector 6awg YS6C Burndy

SAR12.00

Sleeve Connector 6awg YS6C Burndy is a 6 AWG CU, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, BLUE Color Code, 7 or 374 Die Index.

Sleeve Connector 6awg YS6C Burndy

SAR12.00

Add to cart
SKU: al33 Categories: , , , Brand:

Sleeve Connector 6awg YS6C Burndy

Product Details

Sleeve Connector 6awg YS6C Burndy is a 6 AWG CU, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, BLUE Color Code, 7 or 374 Die Index.

Detailed Features

UL Listed 90 DEG C, 600 Volts to 35 kV, Long Barrel Length: Ideal For 600 Volt Heavy Duty Applications, Also May Be Used At Higher Voltages Up To 35KV, Four (4) Center Conductor Stops: Provides A Center Wire Stop For Proper Conductor Insertion, High Pull Out Force: Provides Added Security For Much Greater Mechanical And Electrical Properties, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), Oil Stop: No, Color Code: Blue, Tapered End: No, Die Index: 7 Or 374, Wire Strip Length: 1-3/16 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: Y1MRTC Tool, (2), Y2MR Tool, MD7-34R Tool, W5CVT Die, (2), MD6, OUR840 Tool, X5CRT Die, (2), Y35 , Y39, Y750 Tool, U5CRT Die, (2), Y46 Tool, U5CRT Die With PUADP-1 Adapter, (2), Conductor Type: Commercial Stranded Copper

Product Details

Application: Wire Splice
Color Code: Blue
Connector Type: LONG BARREL
Die Index: 7
EU RoHS Indicator: Yes
Feature – Barrel Style: Chamfered
Feature – Barrel Type: Long
Finish Type: Tin-Plated
Material: COPPER
Plated: Y
Plating Type: Tin – Electro Plated
Sub Brand: HYLINK
Trade Name: HYLINK™
Type: YS, Long Barrel

Electrical Ratings

Rating – KVA: 35 kV
Voltage – Maximum: 35000
Voltage Rating: 35 kV

Conductor Related

Material: COPPER
Solid Size: 6 Sol.
Str Size: 6 AWG
Str Size Range:6 AWG
Size: 6 AWG
Type: CODE
Wire Size: #6 AWG

Aloufy Advantage

Aloufy electricals has a stellar reputation for obtaining appropriate materials for important projects and has helped numerous prestigious ARAMCO / SABIC projects throughout the years. And our main strength and core competency is the urgent acquisition of resources from abroad. We also maintain a sizable stock of materials for each client as per their unique project needs eliminating long lead times and potential project delays. So place your enquiries with Aloufy. And we will be glad to help you choose the right products.

Shop for other Sleeve Connectors offered from Aloufy here.
