Cable Lug 4hole 1000mcm X 1/2″ YA444N Burndy
Product Details

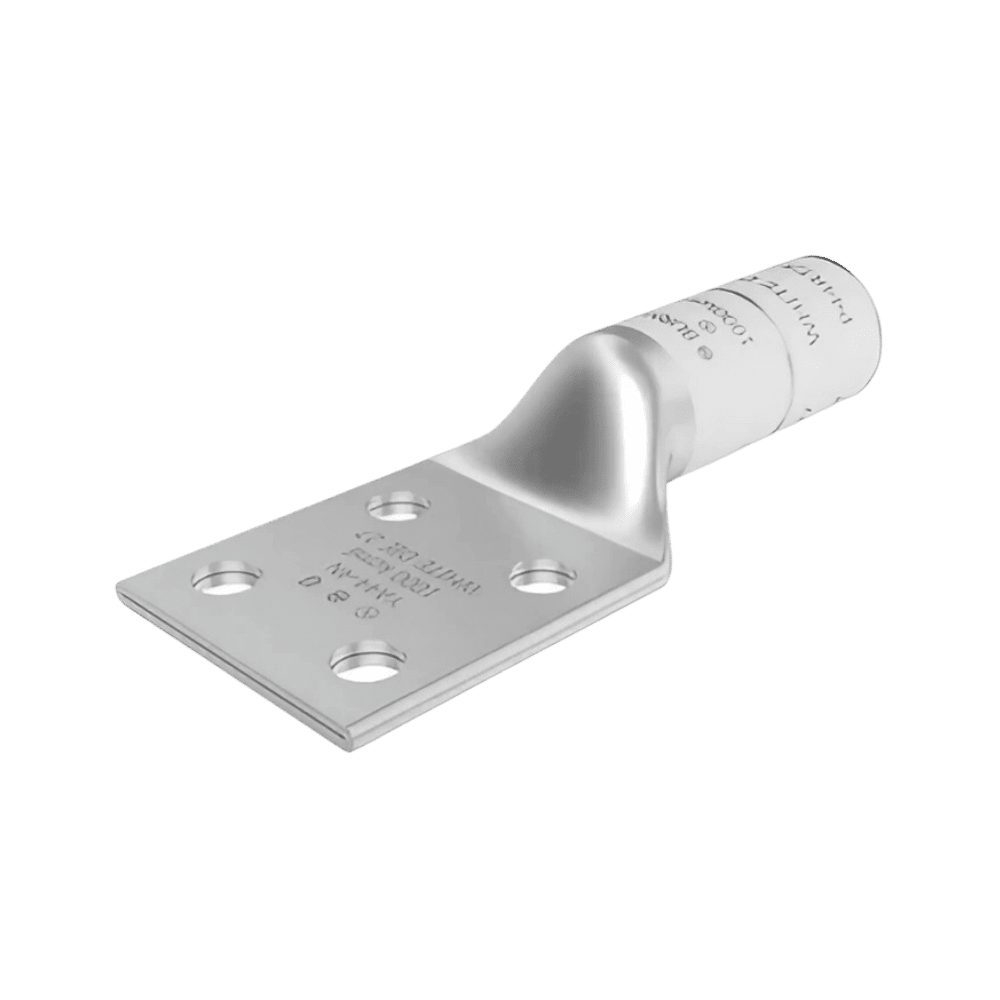

Cable Lug 4hole 1000mcm X 1/2″ YA444N Burndy is a Copper Compression Lug, 4 Hole w/o Inspection Window, 1000 kcmil, 1/2″ Stud, 1-3/4″ Stud Hole Spacing, Long Barrel, Tin Plated.
Detailed Features
45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Color Code: White, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y46 Tool, P44RT Die, Die Index: 27, Wire Strip Length: 3-1/16 IN
Product Details
Application: Wire Termination
Color Code: White
Connector Type: LONG BARREL
Die Index: 27
EU RoHS Indicator: Yes
Feature – Barrel Style: Chamfered
Feature – Barrel Type: Long
Finish Type: Tin-Plated
Material: COPPER
Physical Attribute – Number of Holes: 4
Plated: Y
Plating Type: Tin
Sub Brand: HYLUG
Temperature Rating: 194
Trade Name: HYLUG™
Type: Long Barrel, Tin Plated
Electrical Ratings
Rating – KVA: 35 kV
Voltage – Maximum:35000
Voltage Rating:35 kV
Conductor Related
Copper Str Size:1000 KCMIL
Copper Str Size Range:1000 kcmil
Material: COPPER
Size:1000 KCMIL
Type:CODE
