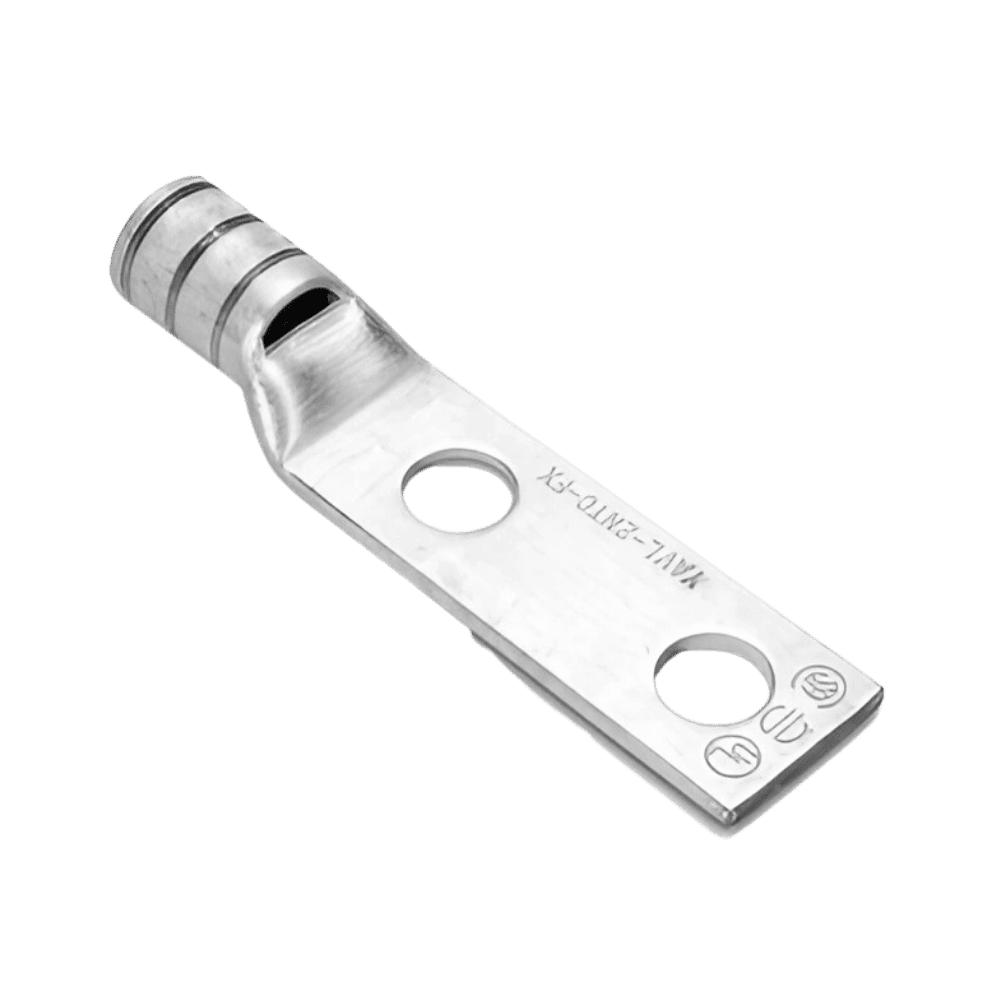

Cable lug 2Hole 777mcm x 1/2″ ya44l2ntcfx Burndy

Product Details

Please find product details for Cable lug 2Hole 777mcm x 1/2″ ya44l2ntcfx Burndy

Technical Description

Electro Tin Plated Copper Material; Yellow Color; 5.74 Inch Overall Length; 1.65 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating

Product Specifications

Number of Pad Holes:2
Pad Hole Spacing: 1.75 Inch
Stud Size: 1/2 Inch
Color: Yellow
Die Index: L115
Material: Electro Tin Plated Copper
Overall Length: 5.74 Inch
Approval: UL, CSA
Additional Information: ROHS COMPATIBLE; CABLE ENTRY TYPE BEVELED, CHAMFERED; WIRE STRIP LENGTH 1 5/8 INCH; TEMPERATURE RATING 90 DEG C; WITH INSPECTION WINDOW
Catalog Number: YA44L2NTCFX
Brand Name: HYLUG[TM]
Model: YA-L-2TC-FX
Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Material: Copper
Conductor Size: 750 KCMIL (Flex), 1925/24 (Flex), 777.7 KCMIL Stranded (Code)
Barrel Type: Short, Standard, Straight
Barrel Length: 1.65 Inch

Catalog Description

750 KCMIL G,H,777 DLO CU, TWO HOLE, 1/2 STUD SIZE, 1-3/4 HOLE SPACING, STANDARD BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, YELLOW COLOR CODE, L115 DIE INDEX.
Category: Large Terminals & Connectors

Full Technical Description

Electro Tin Plated Copper Material; Yellow Color; 5.74 Inch Overall Length; 1.65 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 750 kcmil (Flex), 1925/24 (Flex), 777.7 kcmil Stranded (Code) Conductor Size; 1/2 Inch Stud Size; L115 Die Index; 2.19 Inch Width X 0.33 Inch Thickness Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Short, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Cable Entry Type Beveled, Chamfered; Wire Strip Length 1 5/8 Inch; Temperature Rating 90 Deg C; With Inspection Window; YA-L-2TC-FX Model

Made in USA: Yes
Manufacturer: BURNDY PRODUCTS
Manufacturer Brand: Burndy Products
Product Description: BURND Y YA44L-2NTC-FX 750MCM 2-HOLE LUG
