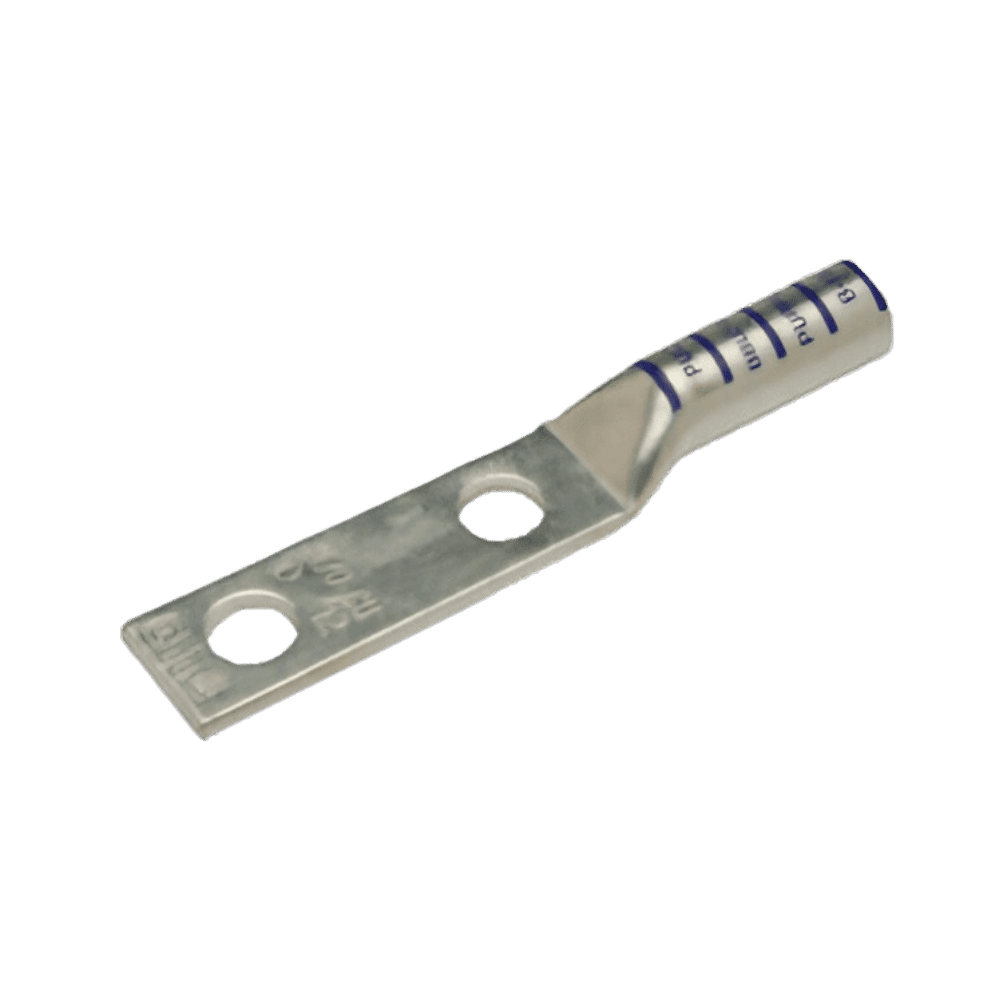

Cable Lug 2hole 2awg X 1/2″ BBLU-2D6 Penn-Union

Product Details

Cable Lug 2hole 2awg X 1/2″ BBLU-2D6 Penn-Union is a Copper Compression Lug – Long Barrel, Two Hole Tongue with Closed Transition 2 AWG

Detailed Description

• Manufactured from high-conductivity seamless copper tubing
• Tin-plated to inhibit corrosion
• Beveled entry for easy cable insertion
• Closed transition protects end of cable from environmental conditions
• Two-hole mounting pad assures maximum secureness
• Long barrel provides high pull out force and added secureness for improved mechanical and electrical properties
• Color coded barrel is marked with die index number
• Suitable for voltages up to 35 KV
• 45° and 90° angles are UL listed and CSA certified
• For 45° or 90° bent tongue, add suffix “-45” for 45 deg. or “-90” for 90 deg. to the catalog number
• UL listed per UL486A-B and CSA certified per C22.2 No. 65 for power applications
• UL listed for grounding, bonding, and direct burial applications per UL 467
• CSA certified for grounding, bonding, and direct burial applications per C22.2 No. 41
• UL listed and CSA certified with Penn-Union, Burndy, T&B, Huskie, Greenlee and Versa-Crimp® style tooling

Copper conductor size

Copper Conductor Size: 2 AWG

Product dimensions

W (in.) : 0.81
C (in.) : 3.00
T (in.) : 0.10
B (in.) : 1.25
L (in.) : 4.53
Stud Hole Size: 1/2″
Stud Hole Spacing (in.):1.75
