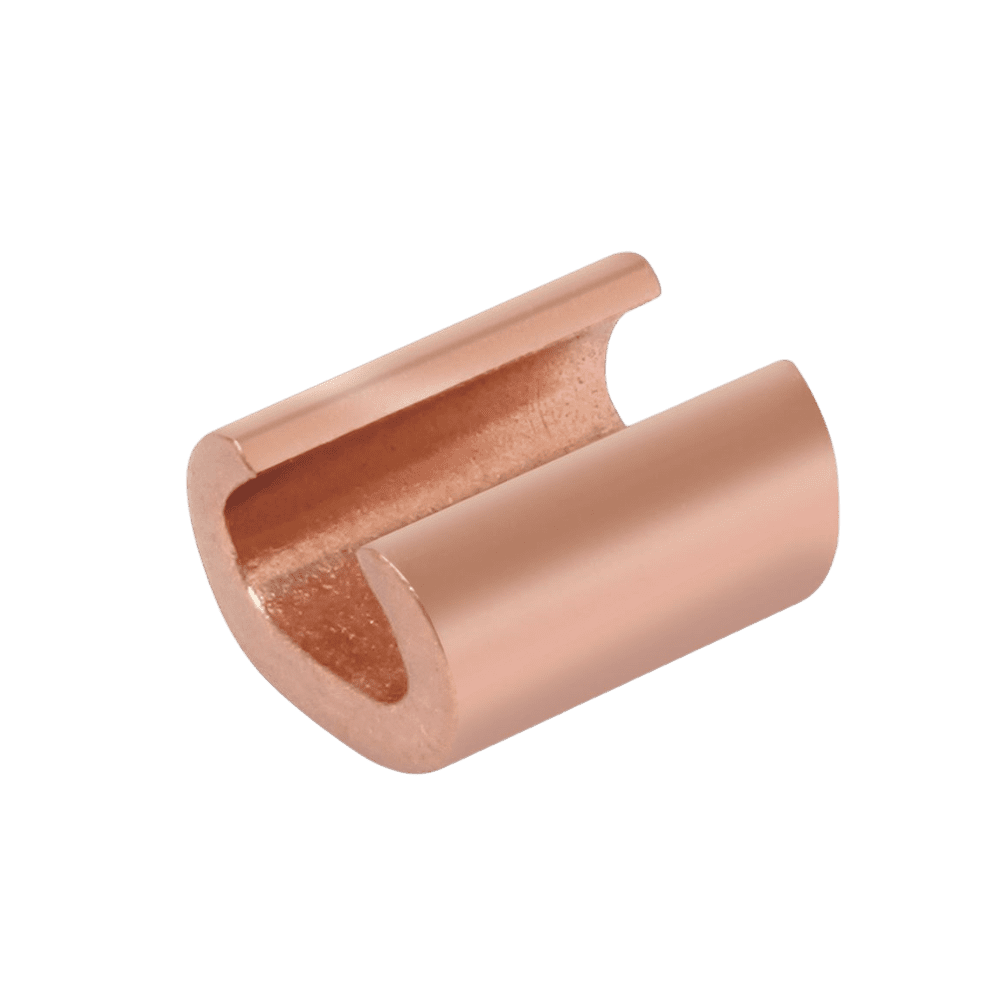

C Crimp Connector 16-25mm2 x 16-25mm2 Burndy Yc4c4

Product Details

This is the C Crimp Connector 16-25mm2 x 16-25mm2 Burndy Yc4c4.

CU Compression C Shape Compression Connector, 600 Volts to 35 Kv, 6
Sol. – 4 Str. (Run & Tap).

Features: Range-Taking Connector: Lowers Inventory Requirements,
Compact Size: Easy To Tape And Insulate Connection, Manufactured
From High Conductivity Wrought Copper: Provides Low Resistance And
Excellent Electrical Conductivity, Economical: Provides Low Installed
Cost, Conductor Size (run – Range): 6 AWG Solid – 4 AWG Stranded,
Conductor Type: Run And Tap: Commercial Stranded Copper, Conductor
Size (tap Range): 14 – 8 AWG Flex Copper, Shape: C, Die Index: BG Or 5/8
Element A, Tools, Die Set Catalog Number, And (number Of Crimps): Y35,
Y750, Y45, Y46 Tool, U-BG Die, (1), MD6 Tool, BG Die, (2), W-BG Die, (1),
OUR840 Tool, XNBG Die, (2)

General

Application For Range Of Copper And Making Tap Or Parallel Copper Connections
Die Index BG or 5/8
Material Copper
Plated N
Plating Type Unplated
Sub Brand CRIMPIT
Trade Name CRIMPIT™
Type YC-C Series
UPC 781810113509
UPC 12 Digit 7818101135099

Dimensions

Height inch 0.81 in
L Length Overall mm 14 mm
Length Overall inch 0.57 in

Conductor Related

Rod Size 5/8 in ; 3/4 in
Conductor Size 2/0 AWG Sol – 250 kcmil

Certifications and Compliance

– CSA Approved No
– ETL No
– UL Recognized No
– cULus No
Industry Standard(s) UL 486A
UL486B
Standards – Industry Standards Met UL 486A
UL486B

Standards – RoHS Compliance Status CM
UL Listed Yes
