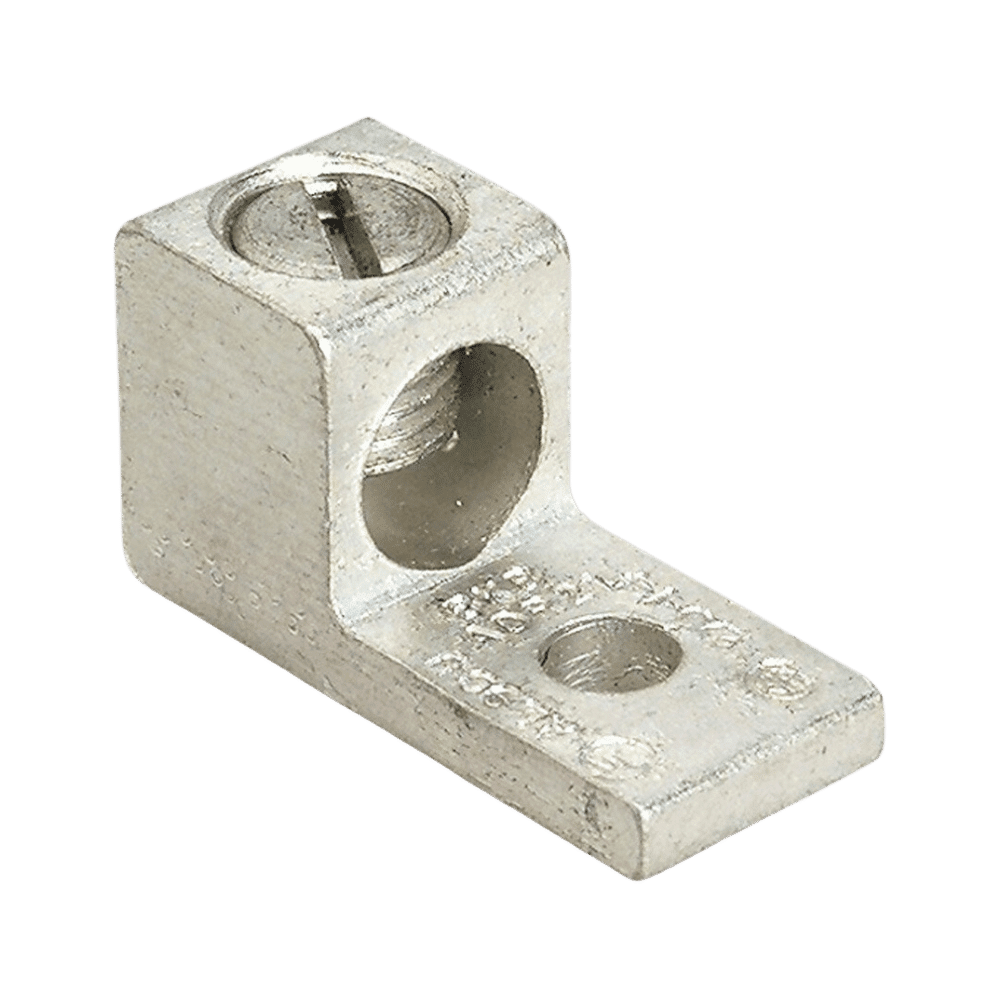

ADR Lug 6AWG to 250MCM One Hole ADR25

Product Details –

Find Full descriptive details of ADR Lug 6AWG to 250MCM One Hole ADR25 Blackburn ADR25 6-250 Aluminum/Copper Screw Lug

Technical Description

Dual Rated Type; Tin Plated Aluminum Material; 2 Inch Overall Length; 6 AWG Stranded min. Conductor Size; 250 kcmil Max. Conductor Size; Copper/Aluminum Conductor Material; UL 486B, CSA Approval; 1 Conductor(S); 5/16 Inch Stud Size

Product Specifications – ADR Lug 6AWG to 250MCM One Hole ADR25

Screw Type: Socket
Material: Tin Plated Aluminum
Number of Pad Holes: 1
Pad Size: 1 Inch Length x 1 Inch Width x 1/4 Inch Thickness
Stud Size: 5/16 Inch
Overall Length: 2 Inch
Approval: UL 486B, CSA
Additional Information: Height 1-1/8 Inch
Catalog Number: ADR25
Brand Name: Blackburn
Type: Dual Rated
Number of Conductors: 1
Minimum Conductor Size: 6 AWG Stranded
Maximum Conductor Size: 250 KCMIL
Conductor Material: Copper/Aluminum
Pad Type: Straight
Catalog description: TYPE ADR-ALCUL SINGLE-CONDUCTOR, ONE-HOLE MOUNT, CONDUCTOR RANGE MAX 250 KCMIL, MIN 6 STR, SOCKET SCREW, TIN PLATED
ull Technical Description: Dual Rated Type; Tin Plated Aluminum Material; 2 Inch Overall Length; 6 AWG Stranded min. Conductor Size; 250 kcmil Max. Conductor Size; Copper/Aluminum Conductor Material; UL 486B, CSA Approval; 1 Conductor(S); 5/16 Inch Stud Size; 1 Inch Length X 1 Inch Width X 1/4 Inch Thickness Pad Size; 1 Pad Hole(S); Straight Pad Type; Socket Screw Type; Adr-ALCUL[TM] Brand; Height 1-1/8 Inch
Manufacturer: ABB, Inc. – Thomas & Betts
Manufacturer Brand: T&B Blackburn
Product Description: Blackburn ADR25 6-250 Aluminum/Copper Screw Lug
