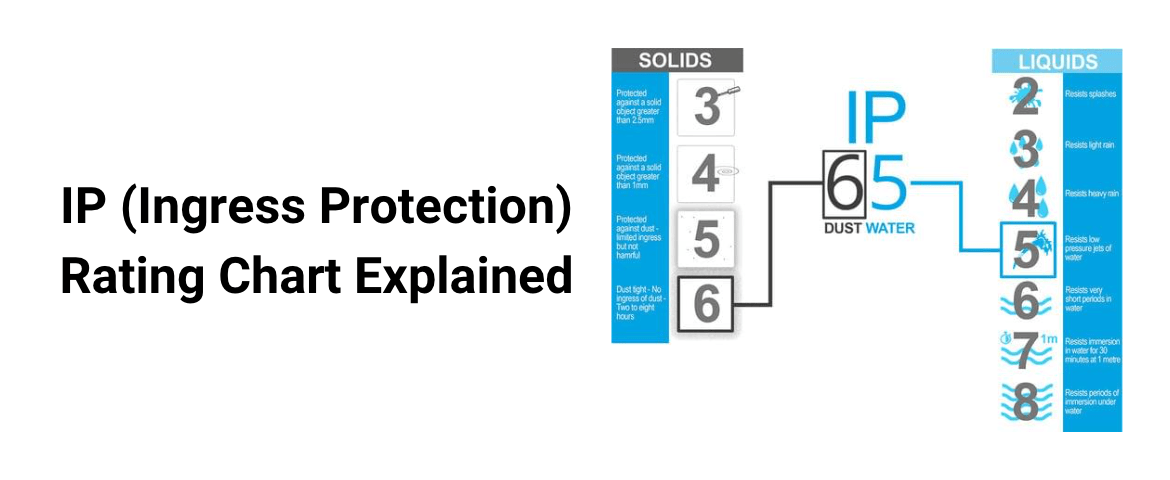

The IP Code (or International Protection Rating, sometimes also interpreted as Ingress Protection Rating”) consists of the letters IP followed by two digits and an optional letter. As defined in international standard IEC 60529, it classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures. The standard aims to provide users more detailed information than vague marketing terms such as waterproof.
The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. For example, an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. IP22 or 2x are typical minimum requirements for the design of electrical accessories for indoor use.
*Explanation of the letters is given in IEC 60259 (Ed. 2.1), clause 4.1
First Digit: Solids
The first digit indicates the level of protection that the enclosure provides against access to hazardous parts (e.g., electrical conductors, moving parts) and the ingress of solid foreign objects.
Second Digit: Liquids
Protection of the equipment inside the enclosure against harmful ingress of water.

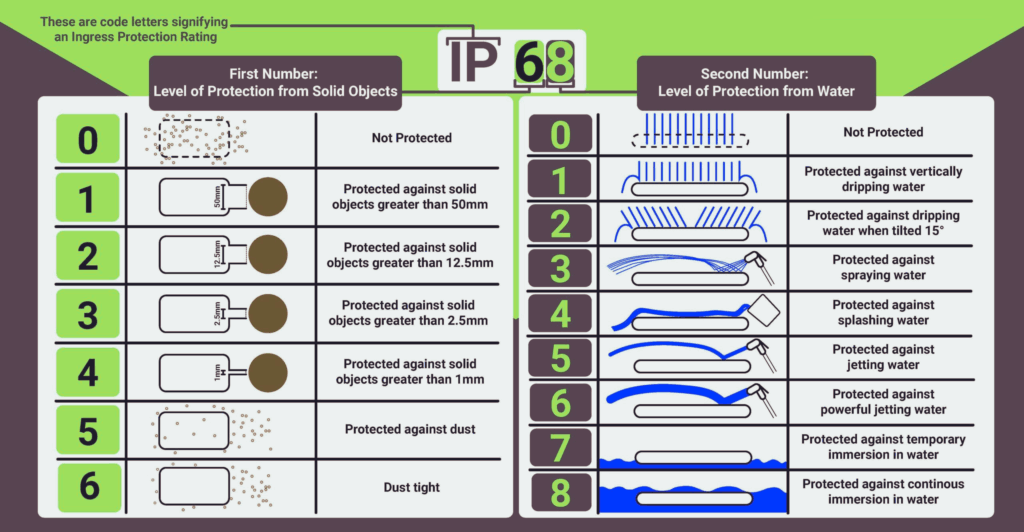

Ingress Protection Rating Reference Chart
Below is an easy to follow reference chart to help you decide which IP rating you need or have.
We at Aloufy sell products pertaining to proper IP (Ingress Protection) standards. Visit our range of products to know more. Aloufy Electricals acquires quality materials for significant projects and has assisted prestigious ARAMCO/SABIC projects for years. Our main strength and core competency is the urgent acquisition of resources from abroad. We stock materials for each client’s unique project needs to eliminate long lead times and project delays. Place your enquiries with Aloufy. We would be glad to help you choose the right products.
